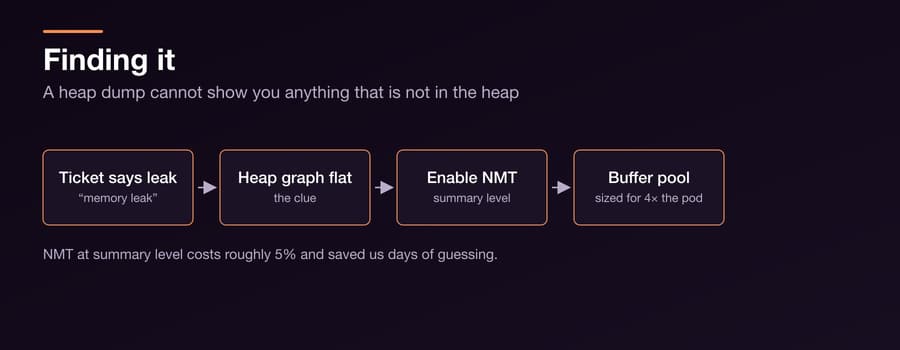

The ticket said "memory leak". The heap graph was flat. Both were true, and the second one was the clue.

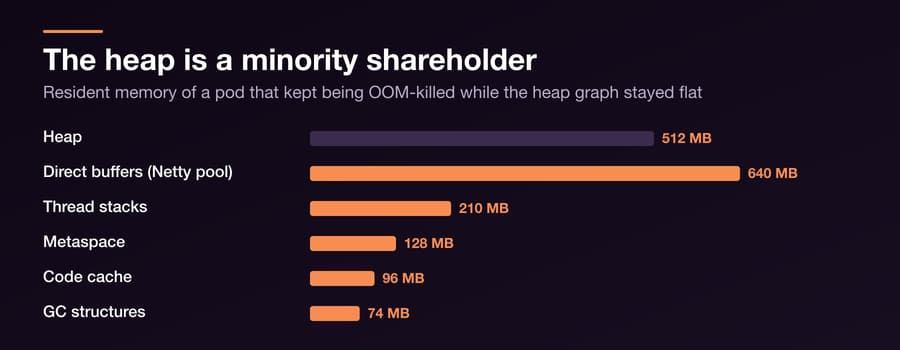

The heap is a minority shareholder

A JVM in a container spends memory on metaspace, code cache, thread stacks, GC structures and direct buffers, none of which appear in a heap dump. Native Memory Tracking is the only honest accounting, and it is off by default.

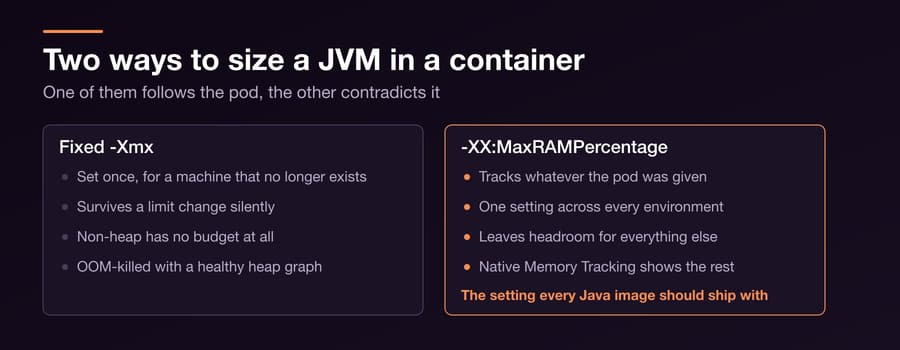

• Set -XX:MaxRAMPercentage rather than a fixed -Xmx, so the limit follows the pod.
• Every thread is a stack. A thread-per-connection server with a 1MB default is a memory plan, not an accident.
• Direct buffers live outside the heap and are freed when the referring object is collected, which may be much later than you assume.

We found ours in a Netty buffer pool sized for a machine four times larger than the pod. The heap was never the problem.
